Hamilton

Hamilton Incyte Arc Expert

£0.00
Length
Request Volume Quote Here

Availability

In stock. Ships globally direct from Hamilton to research and production facilities.

Shipping

Add to cart & view shipping options / prices in checkout for your region. Orders fulfilled directly by Hamilton with temperature-controlled shipping where required.

Payment

Purchase orders also accepted. Select bank transfer at checkout and provide your PO number in order notes or email to sales@cellbase.com

Payment methods supported

  • Card (secure processing, immediate fulfilment)
  • Bank transfer (proforma invoice issued at checkout)
  • Purchase order (submit PO number with order or via email)

Suppliers invoice directly. VAT handled per vendor jurisdiction.

Card payments process immediately. Bank transfer and PO orders process upon payment receipt.

Legal

Most products require no additional agreements. Cell lines and certain biological materials require a Material Transfer Agreement (MTA) on first purchase from each supplier. We handle this digitally - both parties sign online before shipment. Subsequent orders from the same supplier proceed immediately.

Support

Hamilton provides direct post-sales support including troubleshooting, process optimisation, and protocol guidance. Batch-specific documents available on request.

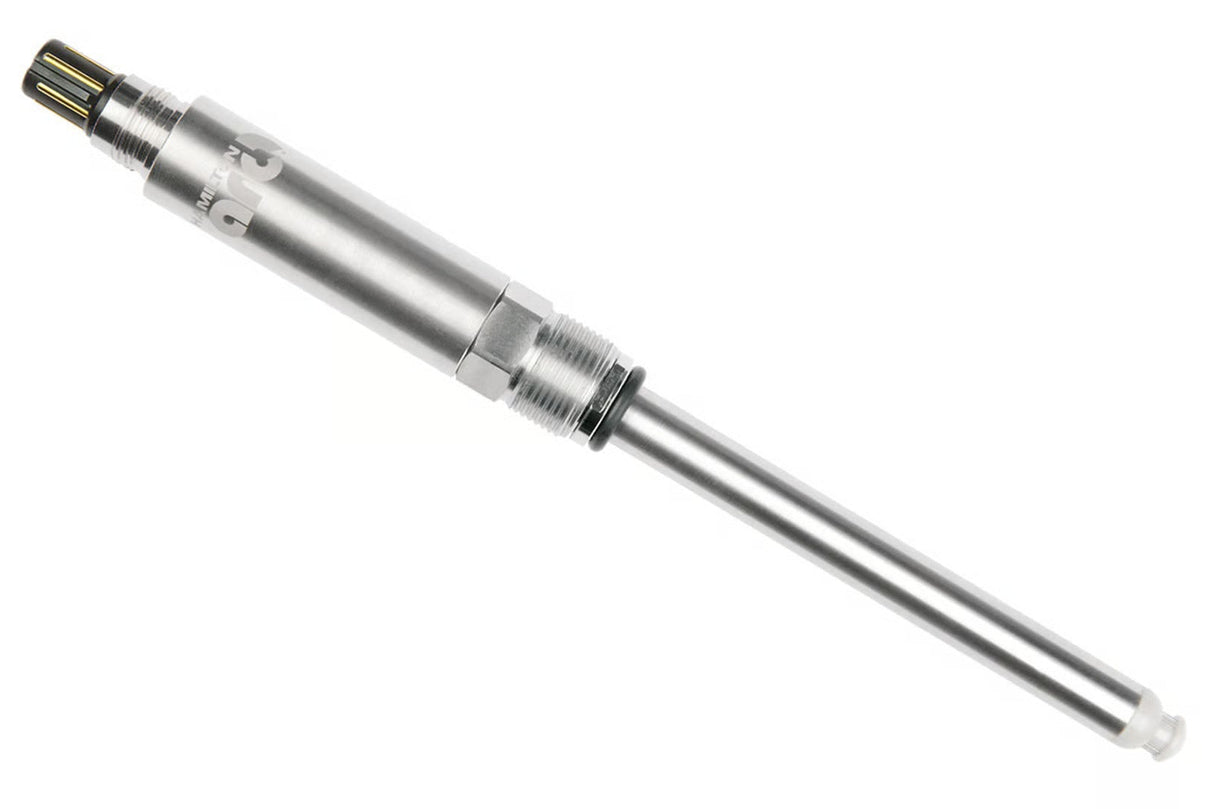

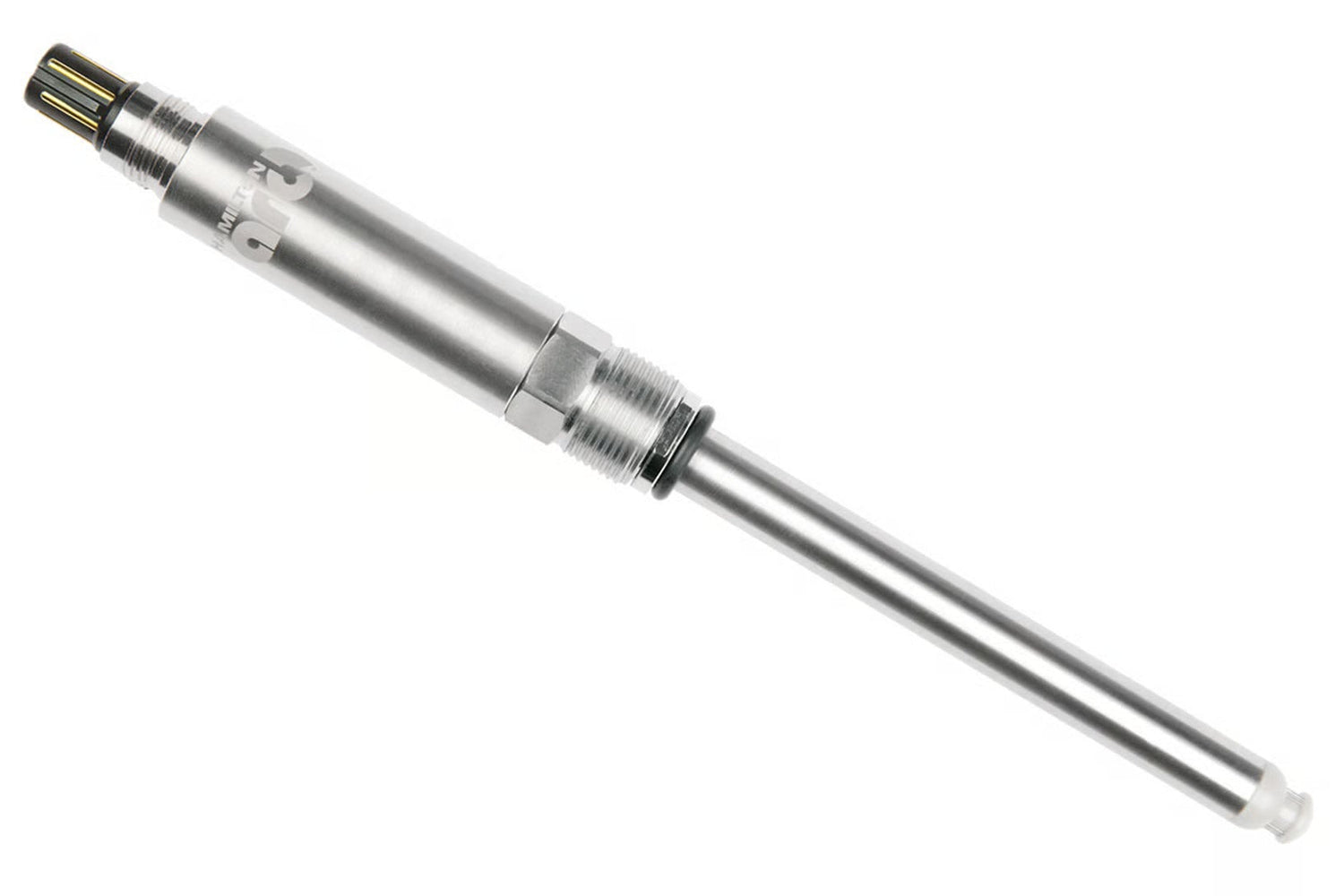

The Hamilton Incyte Arc is a permittivity-based sensor engineered for the in-situ measurement of viable cell density in mammalian, yeast, and high-density bacterial cultures. By utilizing dielectric spectroscopy, it distinguishes between viable cells and dead cells or debris, providing a continuous, real-time profile of culture biomass without the latency or contamination risks associated with offline sampling. This data enables immediate detection of process deviations and precise identification of key metabolic events, allowing operators to optimise feeding strategies and harvest timing based on physiological status rather than a predetermined schedule.

The sensor features integrated Arc technology, which miniaturises the transmitter electronics directly into the sensor head, eliminating the need for bulky external transmitters and enabling direct communication with process control systems via 4–20 mA or Modbus interfaces. It offers a broad measuring range correlating to approximately $5 \times 10^5$ to $8 \times 10^9$ cells/mL for mammalian lines and maintains accuracy unaffected by changes in media or microcarriers. The dual-frequency measurement capability allows for the simultaneous scanning of changes in cell diameter and morphology, providing deeper insights into cell health during scale-up.

Constructed with a hygienic, steam-sterilisable, and autoclavable design, the Incyte Arc fits standard PG13.5 process connections and withstands temperatures up to 140 °C. It is suitable for research, pilot, and production-scale bioprocessing in stirred-tank bioreactors, offering a scalable solution for consistent process analytical technology (PAT) implementation.
