Axolotl Biosystems | SKU:
Axo A6 Bioprinting System
Quote
Add your email below and our sales team will be in touch within the hour to put together your Axo A6 Bioprinting System quote...
Availability
Availability
In stock. Ships globally direct from Axolotl Biosystems to research and production facilities.
Shipping
Shipping
Orders fulfilled directly by Axolotl Biosystems with temperature-controlled shipping where required.
Your local duties & taxes are payable where applicable.
Support
Support
Purchase includes full technical documentation (CoAs, Manuals, or Protocols) provided automatically. Direct application support included from Axolotl Biosystems to ensure successful implementation.
Payment
Payment
- Card (secure processing, immediate fulfilment)
- Bank transfer (proforma invoice issued at checkout)
- Purchase order (submit PO number with order or via email)
VAT handled per vendor jurisdiction.
Your local duties & taxes are payable where applicable.
Card payments process immediately. Bank transfer and PO orders process upon payment receipt.
Legal
Legal
Most products require no additional agreements. Cell lines and certain biological materials require a Material Transfer Agreement (MTA) on first purchase from each supplier. We handle this digitally - both parties sign online before shipment. Subsequent orders from the same supplier proceed immediately.

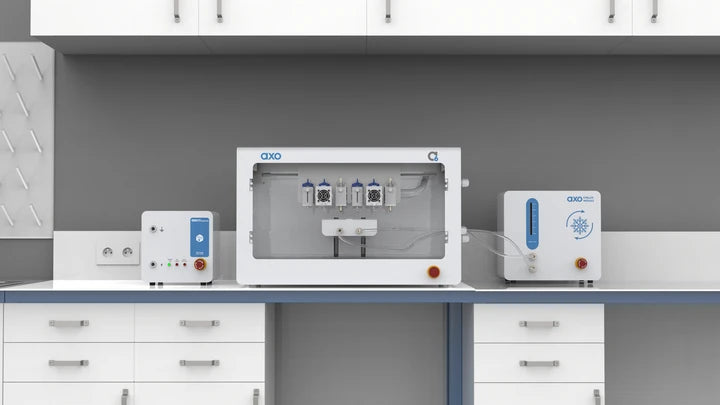

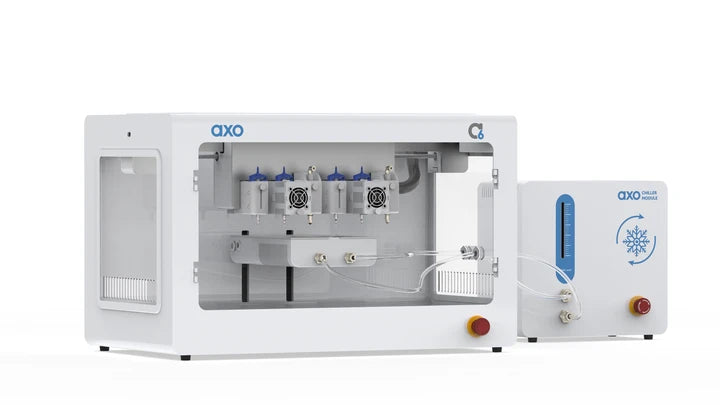

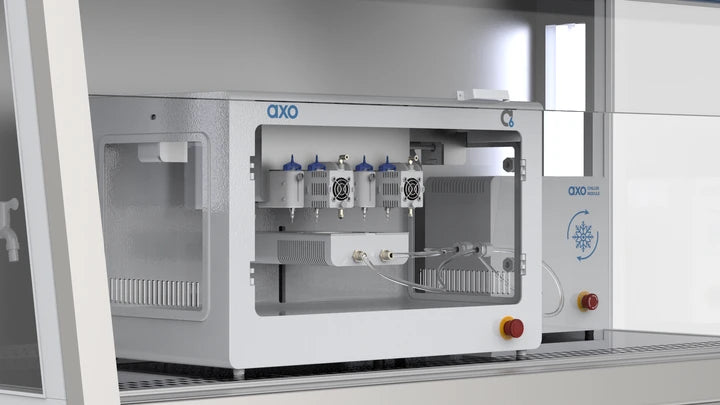

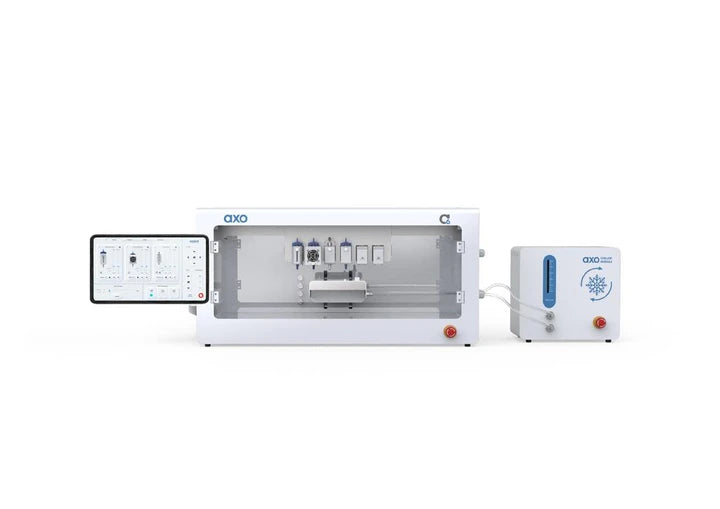

The Axo A6 Bioprinting System is an advanced, high-throughput biofabrication station designed for complex multi-phase and multi-material bioprinting. As a versatile multitasking platform, it features six independent printhead slots, allowing researchers to integrate a wider array of biofabrication modalities—including pneumatic, mechanical, and melt electrowriting—into a single seamless process. This system is engineered for the creation of intricate 3D living tissues and submicron scaffolds with a precision resolution of 1 µm.

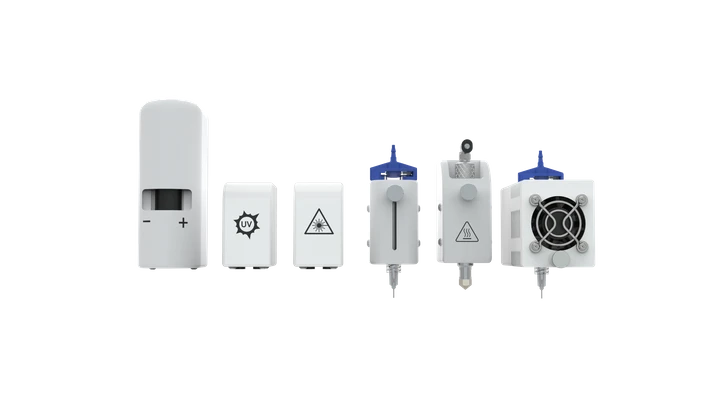

The A6 supports a highly modular ecosystem of intelligent printheads, including Heated (up to 265°C), Cooled (down to 3°C), and specialized Syringe Pump options for varied material viscosities. Unique to the Axo series, the system integrates Melt Electrowriting (MEW) and Cell Electrowriting printheads, utilizing high-voltage precision (0 kV-15 kV DC) to produce ultra-thin fibers at the submicron level. To ensure material stability, the platform includes a liquid-based cooling system for the printbed, capable of reaching -10°C, making it compatible with sensitive biomaterials like Collagen and Matrigel across various formats such as well-plates, petri dishes, and glass slides.

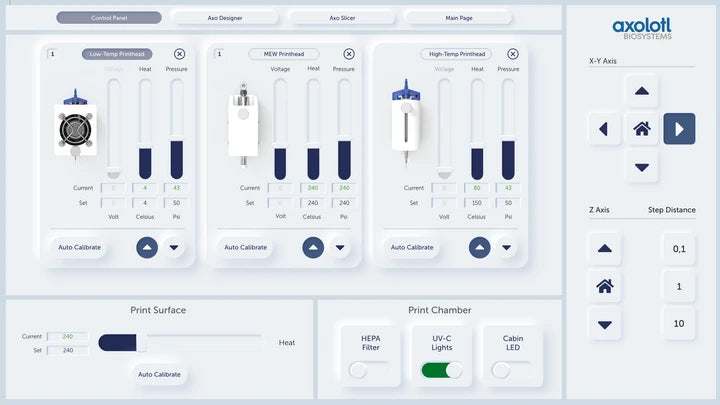

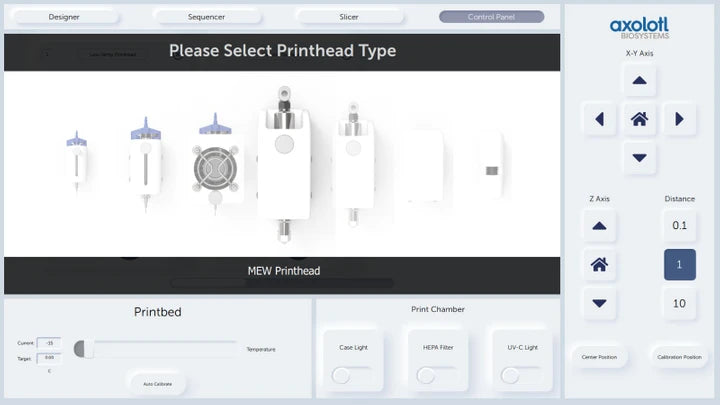

Photocrosslinking is managed through versatile curing options, including UV-LED (365nm to 520nm) and a high-precision UV-Laser (405nm, 50mW) toolhead. Operations are streamlined via the AxoSuite software, which features a unique "Protocols" tool for material profile management and real-time monitoring of the built-in air compressor. Safety and sterility are maintained through a HEPA filter system and UV-C sterilization, while the inclusion of Starter Kits (Bioink, UV Curing, and Scaffold) and online training ensures the platform is ready for immediate research in tissue engineering and regenerative medicine.
For research use only. Not for human clinical or diagnostic applications.
-
Regulatory complianceISO 9001:2015, CE
-
Scale compatibilityLab scale
-
Validation status
-
Application specific
-
Dimensions (H×W×D cm)
-
Equipment Sterilization method
-
Technology typePneumatic Extrusion, Melt Electrowriting, Syringe Pump
-
Temperature Max (°C)
-
Temperature Min (°C)
-
Recipe-Based ControlYes
-
Remote MonitoringYes
-
Interface ConnectivityUSB, Ethernet
-
Fit-for-Purpose CustomizationYes
-
XY Precision
-
Z Precision
-
Pressure Resolution
-
High Voltage (MEW)
-
Current Range (MEW)
-
Printing Velocity
-
Layer Resolution
-
Software Compliance
-
Operating Voltage VDC
