IKA  |  SKU: 0010007595

IKA HABITAT Photo Cell CCT

Tilgængelighed

På lager. Sendes globalt direkte fra IKA til forsknings- og produktionsfaciliteter.

Forsendelse

Ordrer opfyldt direkte af IKA med temperaturkontrolleret forsendelse hvor det kræves.

Dine lokale afgifter & skatter er betalbare, hvor det er relevant.

Support

Købet inkluderer fuld teknisk dokumentation (CoAs, manualer eller protokoller), der leveres automatisk. Direkte applikationssupport inkluderet fra IKA for at sikre en vellykket implementering.

Betaling

Betalingsmetoder understøttet

  • Kort (sikker behandling, øjeblikkelig opfyldelse)
  • Bankoverførsel (proformafaktura udstedt ved betaling)
  • Indkøbsordre (indsend PO-nummer med ordre eller via e-mail)

Leverandører fakturerer direkte

Moms håndteres efter leverandørens jurisdiktion.

Dine lokale afgifter & skatter betales, hvor det er relevant.

Kortbetalinger behandles med det samme. Bankoverførsel og PO-ordrer behandles ved modtagelse af betaling.

Juridisk

De fleste produkter kræver ingen yderligere aftaler. Cellelinjer og visse biologiske materialer kræver en Material Transfer Agreement (MTA) ved første køb fra hver leverandør. Vi håndterer dette digitalt - begge parter underskriver online før forsendelse. Efterfølgende ordrer fra samme leverandør fortsætter straks.

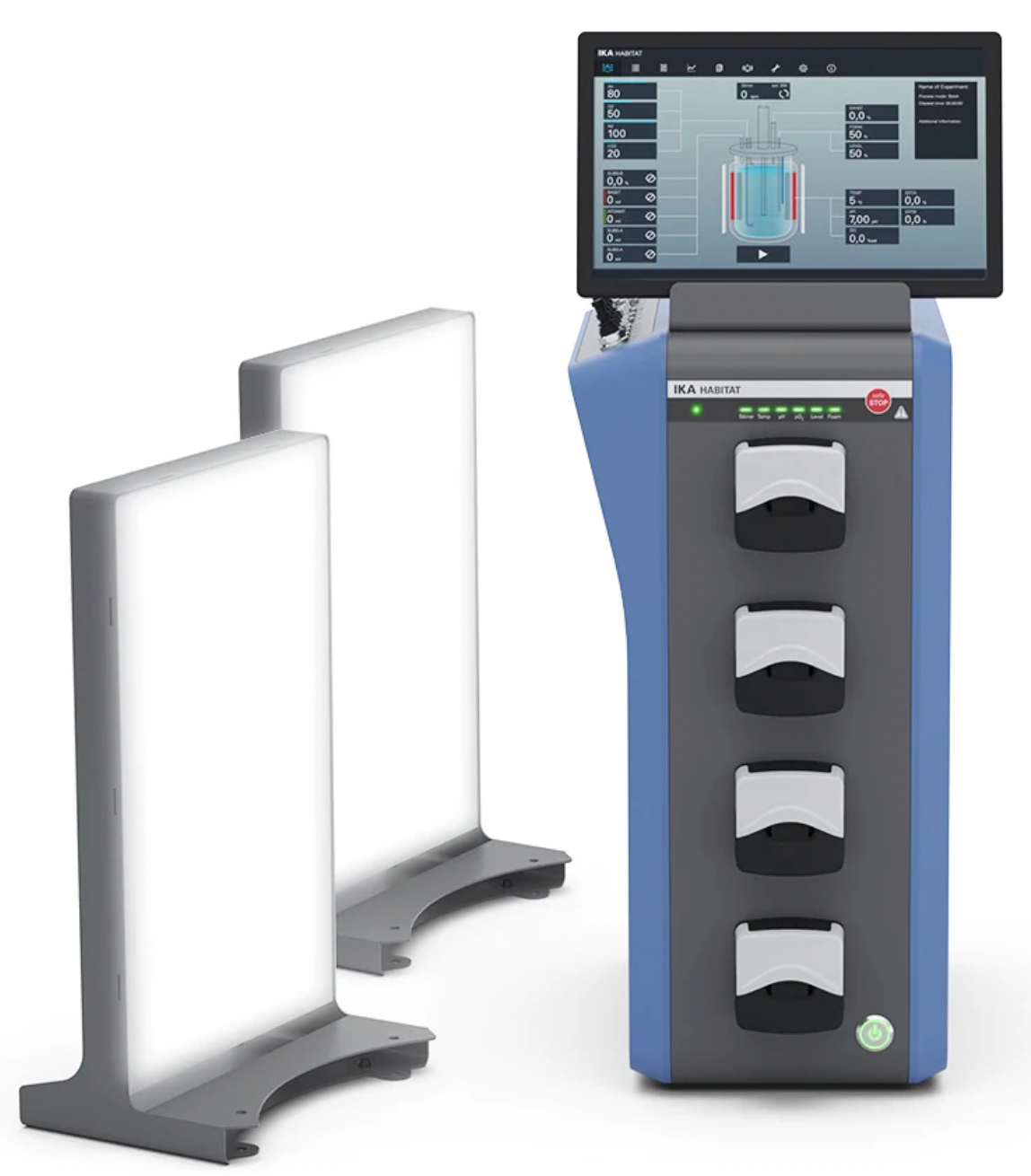

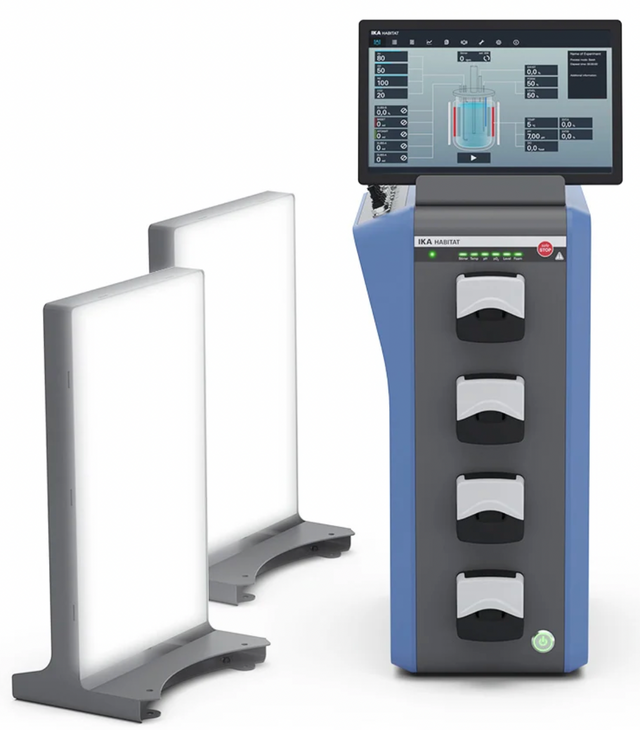

The HABITAT Photo Cell CCT control tower includes LED panels essential for transforming your HABITAT research bioreactor into a photobioreactor. It enables precise monitoring and control of various bioprocesses and is ideal for applications involving photosynthetic organisms, such as algae cultivation. Photobioreactors facilitate the growth of photosynthetic organisms by providing controlled light exposure and environmental conditions, crucial for processes like biofuel production and carbon dioxide sequestration. The system includes two LED panels, the control unit with all connection options for the gas supply, liquid addition, sensors, and temperature control, as well as a tablet for simple and clear operation of the bioreactor. In addition to the HABITAT photo cell control tower, you have the option of connecting CO2, conductivity, and turbidity sensors.

The intuitive software allows easy control and monitoring of the bioprocess and associated parameters via a 10.4-inch tablet. Users can select from batch, fed-batch, and perfusion/continuous operating modes, catering to various cell culture techniques. The innovative Chaotic Mixing function enables efficient and homogeneous mixing when required. The control software provides clear calibration management, real-time data visualization, and complete process documentation, ensuring compliance with FDA CFR Part 11 requirements (optional).

Precise and adjustable gassing is achieved through four individual built-in mass flow controllers for four separate gas lines (N2, O2, air, and CO2), enabling flow rates of 0.01 – 2 L/min tailored to cell growth requirements. By using the integrated and freely customizable cascade control system, each gas flow can be automatically adjusted by the software at any time according to the ambient conditions in order to maintain the target parameters. Four integrated Watson-Marlow pumps with adjustable direction and speed offer highest precision and versatility in pumping in and out as acid, base, anti-foam agents, and feeding solutions for mammalian cell culture media management.

The system comes equipped with latest-technology sensors to precisely monitor and control critical bioprocess parameters. The standard sensors included are pH, DO (dissolved oxygen), temperature, filling level, and foam, with options to connect optional sensors like CO2, Conductivity, Turbidity, Viable cell mass, Redox, and Off-gas analysis. The integrated PID control ensures precise temperature regulation at all times, regardless of vessel type (single-wall or double-wall) or fill level. The unit features a compact, space-saving design with dimensions of 223 x 402 x 450 mm (WxDxH), cross-platform connectivity, data storage, and a status LED display. Only a control tower and the separately available vessel package make up a functional unit.
